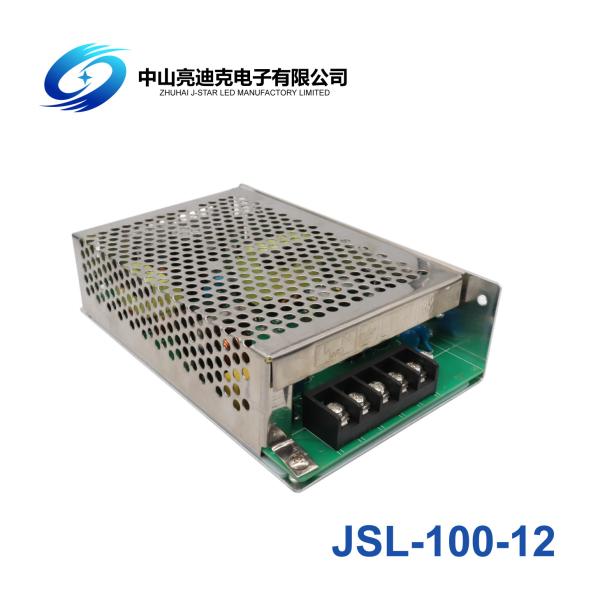

Aluminum Shell SMPS 12V 100W Active PFC Power Supply For LED Lights

Ask Lasest Price
Brand Name :	J-STAR
Model Number :	JSL-12100
Certification :	CE Rohs
Price :	welcome your inquiry
Payment Terms :	T/T, D/P, D/A, L/C, Western Union
Supply Ability :	1000000
Delivery Time :	10-15 DAYS

Add to Cart

Product Details
Company Profile

Aluminum Shell SMPS 12V 100W Active PFC Power Supply For LED Lights

Aluminum Shell SMPS 12V 100W Active PFC Power Supply For LED Lights

Aluminum SMPS AC 110-277V 12V 100W Industrial Applications 5 years warranty

LED Strip High Quality Switch Power Supply AC110-277V 12V 100W PFC > 0.9

Features:

Built-in over voltage, over current, and short circuit protection

PWM design, make sure the stability and high efficiency of power supply.

Anti-jamming, passed EMC test, wave less than 20MV.

Constant voltage output, assume stable power supply for LED lightings to reach long lifetime

Typical Applications

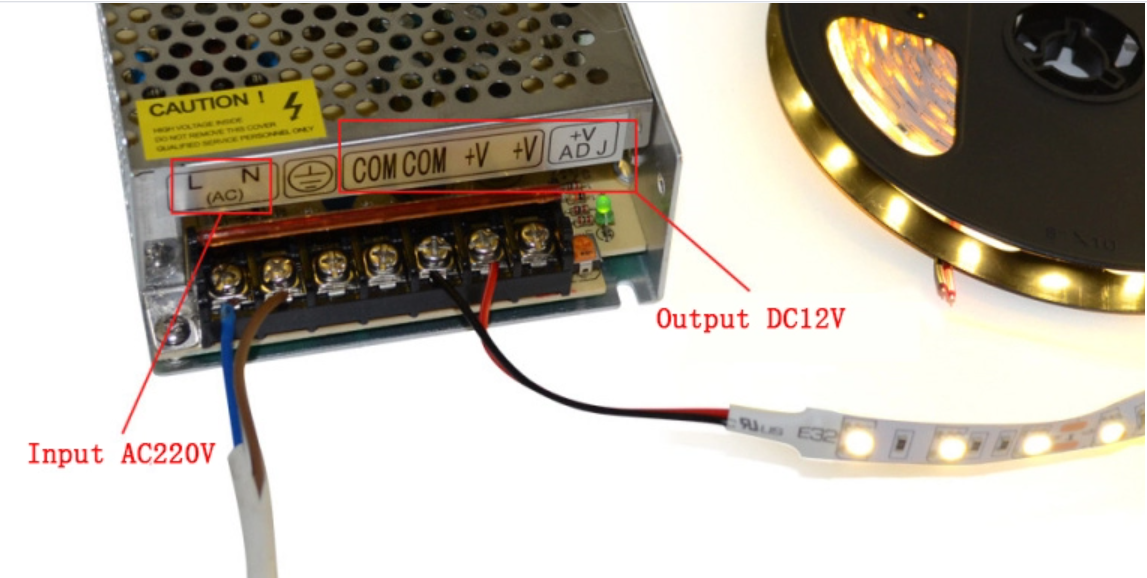

LED Strip power supply

Security surveillance industry

Other industrial applications

Product Description

12V 8.3A PFC LED driver
Model No.	JSL-12100
Input	Voltage	AC 100-277V Worldwide
	Vibration Input Voltage Range	AC 95-265V
	Frequency	50-60Hz
Output	Voltage	DC 12V
	Current	8.3A
	Power	100W
	Typical Efficiency	73%
	Adjustable Range of Voltage	DC 12V-12.5V
	Max. Ripple & Noise	250mV
Protection	Over Load	105-115% of Rated Output Power
	Short Circuit	Protection Type: Auto Recovery
Electric Strength	High-pot test	3KV AC
Environment	Working temperature and humidity	-10°C~+60°C,20~90%RH
	Store temperature and humidity	20°C~+85°C,10~95%RH
	MTBF	>200K hrs.@25°C(MIL-HDBK-217F)
Warranty	5 year

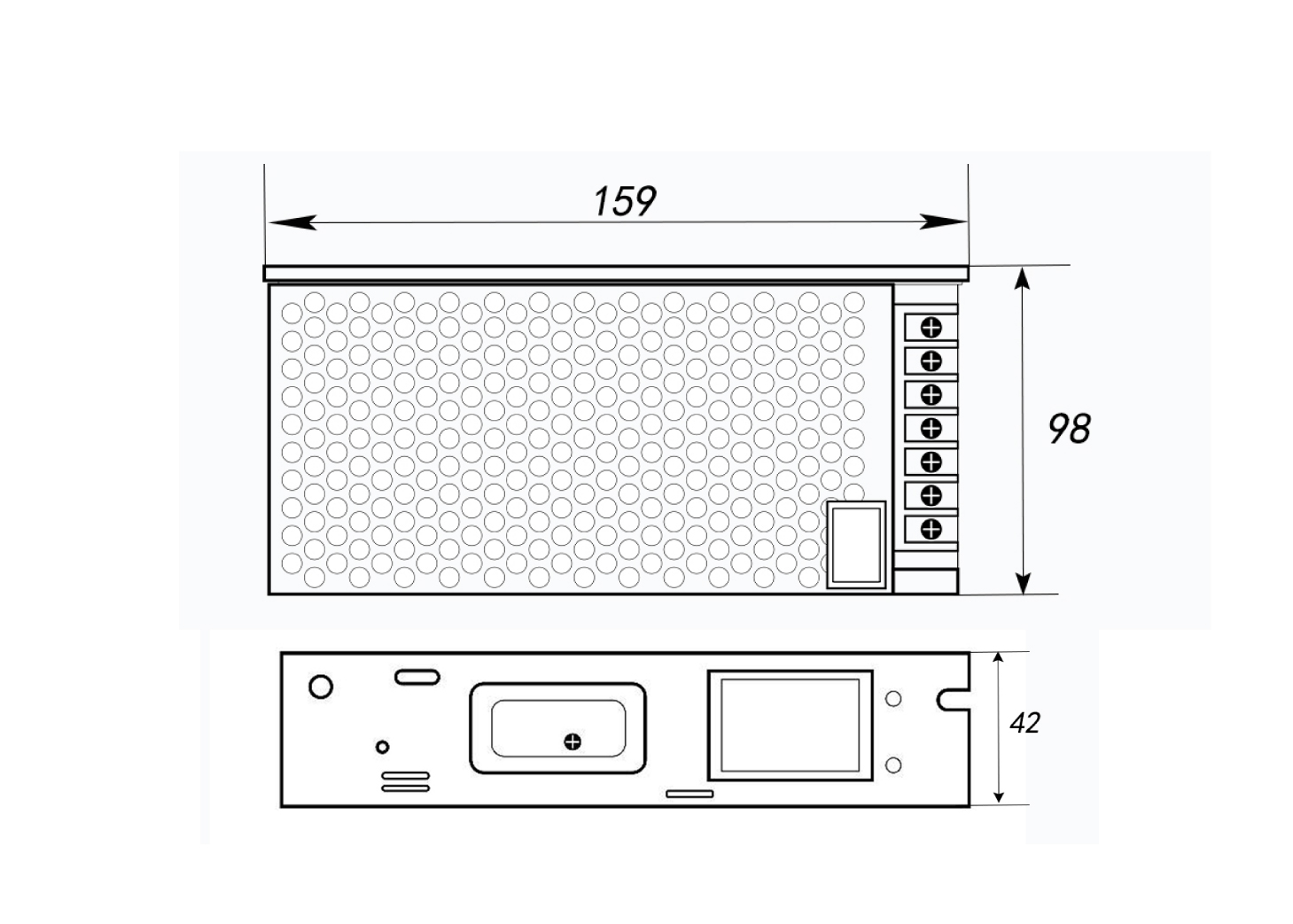

Feature	Dimension(LWH)	1599842mm
	Weight	345g
	Inner box size	16510346mm
	Inner box weight	29G
	PCS/CTN	20 PCS/CTN
	CTN size	532643cm
	GW/CTN	20kg
Safety & EMC	Safety Standards	EN55015/EN61000-3-2/EN61000-3-3

Waterproof IP67 LED Power supply 24V 100W 3

FAQ

Q1: Can I have a sample order for this item?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2: What is the transportation?

A: By Air, by Sea, by Express, by Train and Truck, all are OK to us.

Q3: Do you have any MOQ limit for the order?

A: Low MOQ, 1 pc for sample checking is available.

Q4: Do you offer guarantee for the products?

A: Yes, we offer 2 years warranty to our products.

Q5: What is your main product line is made?

ALED strip light .LED Aluminum profile and led tube lighting system, LED high bay light, LED flood light, LED tube light, bulb light, panel light, ceiling and down lights, all kinds of indoor lighting and outdoor lighting are available.
