    ODM 100W 8.3A CCTV Camera Power Supply Box 12V LED Strips Driver

    Ask Lasest Price
    Model Number : JSPS-100-12
    Brand Name : J-STAR
    Certification : CE ROHS SAA
    Price : welcome your inquiry
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000000
    Delivery Time : 10-15DAYS
    • Product Details
    • Company Profile

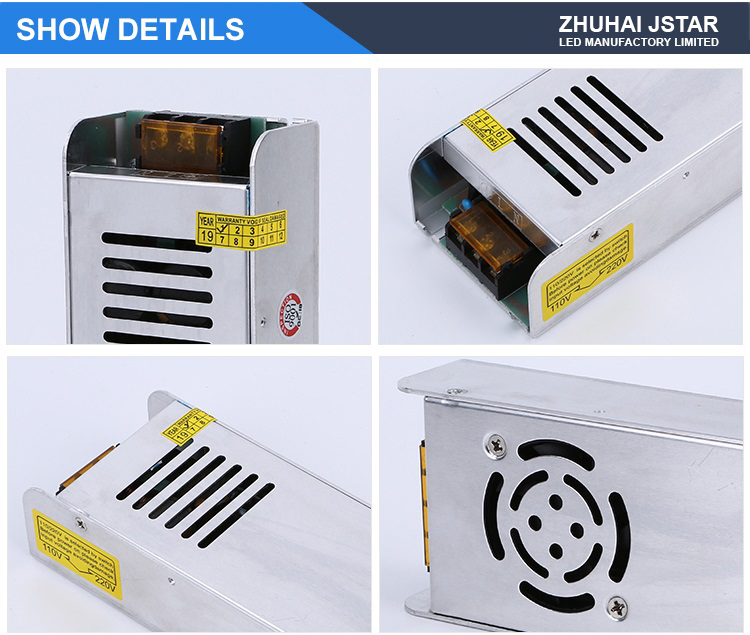

    ODM 100W 8.3A CCTV Camera Power Supply Box 12V LED Strips Driver

    ODM 100W 8.3A CCTV Camera Power Supply Box 12V LED Strips Driver​

    Ultra slim smps 110/220V ac to dc 12V 8.3a 100W single output led strip power supply


    Packaging & Delivery

    Selling Units:
    Single item
    Single package size:
    17.5X5X4.4 cm
    Single gross weight:
    0.366 kg
    Package Type:
     1) Vacuum packing  2)Special Protect carton for exporting product.
    3)Per customer requirement.
    Lead Time:
    Quantity(Pieces)1 - 500501 - 10001001 - 3000>3000
    Est. Time(days)71015To be negotiated
    Product Description

    slim type single switching power supply

    Features: ·Universal AC input range

    · Slim type,Small volume,low weight,high efficiency

    · Protections:short circuit/over load

    · Cooling by free air convection

    · LED indicator for power on

    · 100% full load burn-in test

    · No load consumption<0.8W

    · 2 Years warranty

    DC OutputDC Voltage: 12V
    DC Current : 8.3A
    Ripple & Noise: 80MV
    DC Adjustable Range: ±10% Rated Voltage
    Voltage Tolerance: ±2.0%
    Line Regulation: ±0.5%
    Load Regulation: ±1%
    Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC
    AC InputAC Voltage Range: 85-264VAC
    Frequency Range: 47-63Hz
    Efficiency:90%
    AC Current: 0.86/115V 0.4A/230V
    AC Inrush Current: 20A/115V 40A/230V
    Leakage Current< 0.5mA /240VAC
    ProtectionOver-load: 105%-150% hiccup mode,Auto-recovery
    Over-voltage: 115%-135% Cut Off the Output,Auto-recovery
    Over-temp. : Shut down O/P voltage, Auto-recovery
    EnvironmentWorking temp.: -10~ +60 (Refer to output load derating curve)
    Working Humidity:20 ~ 90% RH, non-condensing
    Storage Temp.: -10~ +60
    Storage Humidity: 10 ~ 95% RH
    SafetyIsolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25/ 70% RH
    Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
    Safety standards: CE,RoHS,FCC,ISO9001

    Our advantage.

    1. a professional manufacturer of led power supply;
    2. Providing service for 3000 customers, including 2000 in China mainland, 1000 in overseas markets;
    3. High reliability and good stability, for many kinds of large-scale outdoor lighting project, through the use of test from 3000 customers;
    4. Complete certification, CE, EMC etc., which small factory often lack of;

    5. After-sale guaranteed, real integrity transactions, 100% replace the faulty items;
    6. Flexible and fast delivery, bulk orders usually delivery within two weeks, general small batch orders can be arranged delivery within 3 days if have semi-finished products in stock.

    FAQ

    Q1. Can I have a sample order for products?
    A: Sure, we welcome sample order to test and check quality. Mixed samples also acceptable.

    Q2. What about the lead time?
    A: Samples needs 1-3 days, mass production time needs 1-2 weeks

    Q3. Do you have any MOQ limit for led light order?
    A: 1pc for sample checking is available

    Q4. How do you ship the goods and how long does it take to arrive?
    A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

    Q5. How to precede an order for products?
    A: 1, Let us know your requirements or application.
    2, we quote according to your requirements or our suggestions.
    3, Customer confirms the samples and places deposit for formal order.
    4, Production arranged.

    Q6. Is it OK to put my logo on labels?
    A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

    Q7: Do you offer guarantee for the products?
    A: Yes, we offer 2-5 years warranty to our products.

    Q8: How to deal with the faulty?
    A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.3%.
    Secondly, during the guarantee period, we will send new products with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
